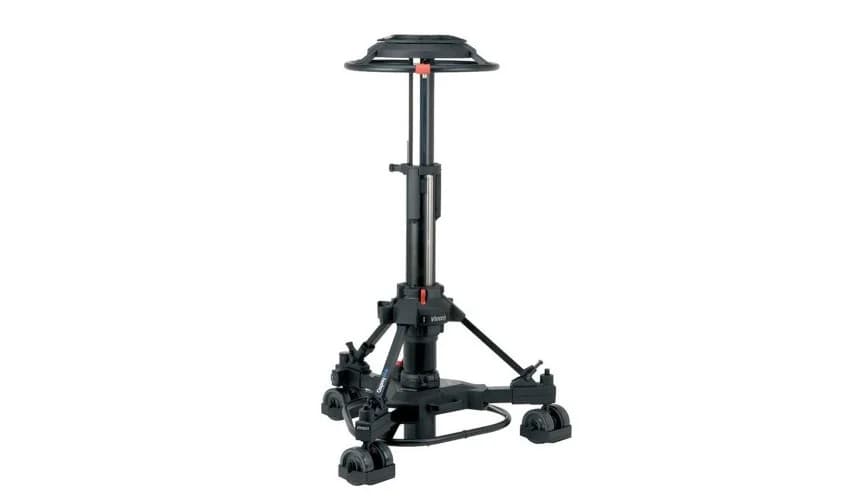

Vinten Osprey Elite – Tripods

Studio configuration spans 66–143 cm height; the 77 cm on-shot stroke represents smooth vertical movement within that range, not total extension. This 77 cm stroke suits most studio floor-to-overhead jib work without requiring extreme pedestal repositioning. Outside broadcast (OB) configuration extends to 68.5–145.5 cm, adding 2.5 cm usable height. For venue ceilings below 150 cm, confirm your jib's fully-extended arm clearance separately; the pedestal height alone doesn't determine maximum camera reach.

Maximum payload is 75 kg (80 kg for Elite S). A typical broadcast camera with zoom lens, prompter arm, and electronics easily fits. The two-stage pneumatic column with pressurized counterbalance maintains smooth operation across the full height range as long as payload stays within spec. However, weight distribution matters: front-heavy accessories (large prompters) affect pan/tilt balance and operator feel. Confirm your final package weight, then test balance at mid-stroke before live production. Unbalanced loads increase operator fatigue and risk control precision.

Maximum pneumatic pressure is 13.8 bar (200 psi). Most OB van compressors output 150–200 psi, suitable for the Osprey Elite with proper regulation and filtration. Standard broadcast infrastructure uses a regulator, moisture trap, and airline to isolate the pedestal from van supply noise and fluctuations. Verify your van's compressor capacity handles the pedestal plus other air tools (lighting, fluid heads). Undersized supply degrades counterbalance consistency during live programming. Install a dedicated regulator with gauge and ensure airline diameter and length match pneumatic load calculations.

OB configuration uses 16 cm (6.3 in) wheels; studio uses smaller 12.5 cm (5 in) wheels. The larger OB wheels handle ramps and rough ground better, but crab steering on slopes requires operator skill to maintain camera frame stability. The steering ring diameter (53.3 cm) provides mechanical advantage, yet uneven surfaces still generate micro-movements that video shows. Test crab steering on your intended surfaces before committing; soft ground, gravel, and steep ramps demand smoother operator inputs and may benefit from outriggers or ballast. Studio wheels suit smooth concrete only.

Detachable column and base allow passage through standard doorways, critical for mobile workflows. Assembly involves connecting the column to the dolly base (typical bayonet or clamp coupling), then pressurizing the pneumatic system via the van's regulated air supply. Full setup—unpack, assemble, pressure, safety check—typically takes 15–20 minutes for experienced crews. However, field disconnection and reconnection introduce potential air-seal wear and require re-bleeding after assembly to remove moisture. Include inspection of couplings and seals in your pre-show checklist, especially after frequent transport. Keep spare air-line connectors on hand.

The two-stage pneumatic column with pressurized counterbalance maintains lift across the full height range. Counterbalance tuning is regulated by system pneumatic pressure; adjusting pressure changes counterbalance force. Most Osprey systems use a pressure regulator accessible during operation, allowing fine-tuning without stopping. However, pressure adjustments affect all pedestal functions proportionally—increasing pressure stiffens the entire control feel. For significant payload changes (camera swap), you'll need to stop, adjust, and test balance before resuming. Carry a pressure gauge and note your baseline pressures for your standard and alternate camera loads.

The Osprey Elite is a mechanical and pneumatic crane; it does not include embedded control interfaces, networked I/O, or automation hookups. Pan, tilt, height, and steering are operator-controlled via mechanical handles and foot pedals. Integration into larger OB systems requires third-party pan/tilt heads (mounted above the pedestal) and optional robotic heads if automation is needed. Router control logic cannot directly command the Osprey Elite's height or movement—these remain manual operator functions. Plan your camera control architecture separately: fluid head for smooth pan/tilt, external robotics kit if remote or programmed moves are required.

Pneumatic pedestals require regular inspection of seals, gaskets, and air-line couplings, especially after frequent assembly/disassembly. Check for air leaks monthly (soapy water test); replace damaged seals and couplings promptly to maintain counterbalance stability. Wheel bearings and steering ring bushings wear with heavy OB use; plan for bearing inspection and replacement every 2–3 years depending on mileage. Spare parts (seal kits, couplings, wheel bearings) should be stocked for rapid field repair. Consult Vinten's service documentation for component torque specs and greasing schedules. Many repairs are field-serviceable with basic tools; major column work may require factory service.

The Osprey Elite is engineered for broadcast use but lacks sealed electronics or corrosion coatings optimized for salt or extended moisture exposure. For outdoor OB work, use weather covers on the column and dolly base, and ensure the air supply includes a quality moisture trap and filter to prevent water ingress into pneumatic lines—humidity degrades seal life and counterbalance consistency. Salt air requires post-show rinsing of exposed metal and lubrication of steering and wheel mechanisms. Extreme cold slows pneumatic response slightly; allow warm-up time before critical live operations. Store indoors and maintain regular seal inspection if you operate in harsh environments regularly.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
