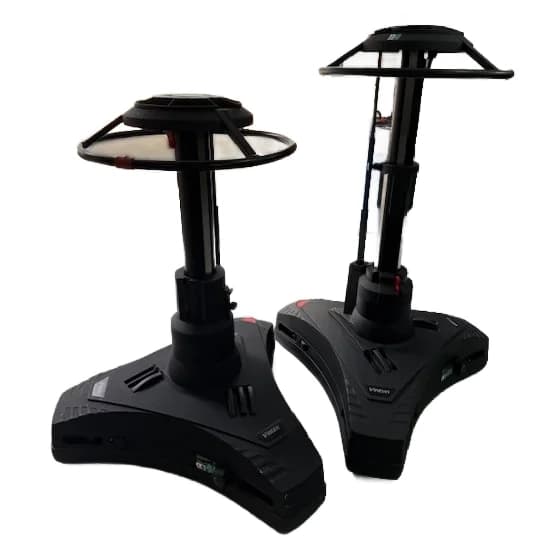

Vinten Quartz One (Black) – Tripods / Accessories

The Quartz One operates between 71–122 cm (28–48 inches) total height, with a 51 cm (20 inch) on-shot stroke. This means you can adjust camera height smoothly during live takes without stopping—ideal for dynamic shots like pushing in or pulling back while maintaining focus. The stroke is sufficient for most studio framing corrections. Verify your specific camera and fluid head combination doesn't exceed the 95 kg payload, as that directly affects usable adjustment speed and smoothness.

The Quartz One features a standard 4-bolt flat base (Model 3825-3) designed for Vector fluid heads. While the interface is standardized, confirm your specific Vector head (e.g., V4, V8, DV8) is approved for pneumatic pedestals and verify payload balance. Contact Vinten technical support with your exact head model to confirm compatibility. Weight distribution matters: ensure your camera rig's center of gravity aligns with the pedestal's neutral point for stable operation.

The Quartz One requires a 12.1 bar (175 psi) supply. A studio installation needs a dedicated compressor rated for sustained duty, pneumatic line to the pedestal base, and a pressure regulator tuned to 12.1 bar. For OB vans, verify onboard compressor capacity and air drying (moisture degrades pneumatic seals). Include isolation valves and filters at the pedestal. We recommend confirming detailed pneumatic schematic requirements directly with Vinten to ensure your supply system won't cause drift or inconsistent rise/fall performance.

Pneumatic pedestals are inherently silent during height adjustment—no motors or gearboxes mean no audible noise pickup. This is a key advantage over electric alternatives in live broadcast. However, ensure your pneumatic supply lines are isolated and dampened to prevent hiss if air is actively bleeding or regulating nearby. The 89.5 kg pedestal weight itself doesn't move, so there's no structural vibration. Test in your actual studio acoustic environment to confirm isolation adequacy.

Primary wear items are pneumatic seals and the air spring cartridge, typically requiring replacement every 2–5 years depending on duty cycle and air quality. Casters (12.5 cm wheels) wear with studio floor use. Maintain a preventative program: drain condensation from the system weekly, keep air filters clean, and verify pressure consistency monthly. Stock common spare parts including seal kits and a replacement air spring. Contact Vinten for a formal maintenance schedule specific to your usage profile and environment.

The Model 3825-3 is a pneumatic-only pedestal without integrated electronic height control. If you require motorized, remote, or precision height presets, you would need to evaluate Vinten's electric pedestal range instead. The pneumatic design is intentionally simple and silent—upgrading it electronically would require replacing the core mechanism. Confirm your operational requirements now: if remote height control or programmable presets are essential, evaluate alternative models before committing to this unit.

The Quartz One has a 108 cm (42 inch) tracking width with a 63.5 cm (25 inch) steering ring diameter. This geometry suits most studio spaces but verify your floorplan—tight corners or confined sets may restrict steering radius. The steering ring operates manually (confirm your operator comfort with this workflow). Test maneuverability with your actual camera rig balanced on the pedestal; center-of-gravity offset can affect steering feel and resistance.

At 122 cm height with a 95 kg camera rig, stability depends on proper air pressure (12.1 bar) and floor levelness. Uneven floors introduce tilt; use leveling feet or shims. Air pressure drift causes height creep over hours—verify your compressor maintains consistent supply. Temperature extremes can affect pneumatic performance; operate between manufacturer-specified limits (confirm with Vinten). Always use the steering lock when stopped for extended periods to prevent accidental drift.

Yes, every used or ex-demo unit is tested and covered by a 90-day warranty. In the event of a failure, the round-trip transport cost is shared equally between the customer and Broadcast Depot.

Yes, Broadcast Depot ships worldwide. We arrange transport on quotation, or you can use your own carrier. Delivery usually takes 3 to 5 days. OB vans are delivered by driver or collected on site.

Yes, in case of an error or if you would like another product from our stock: returns and exchanges are possible with no time limit. Contact us to arrange it.
