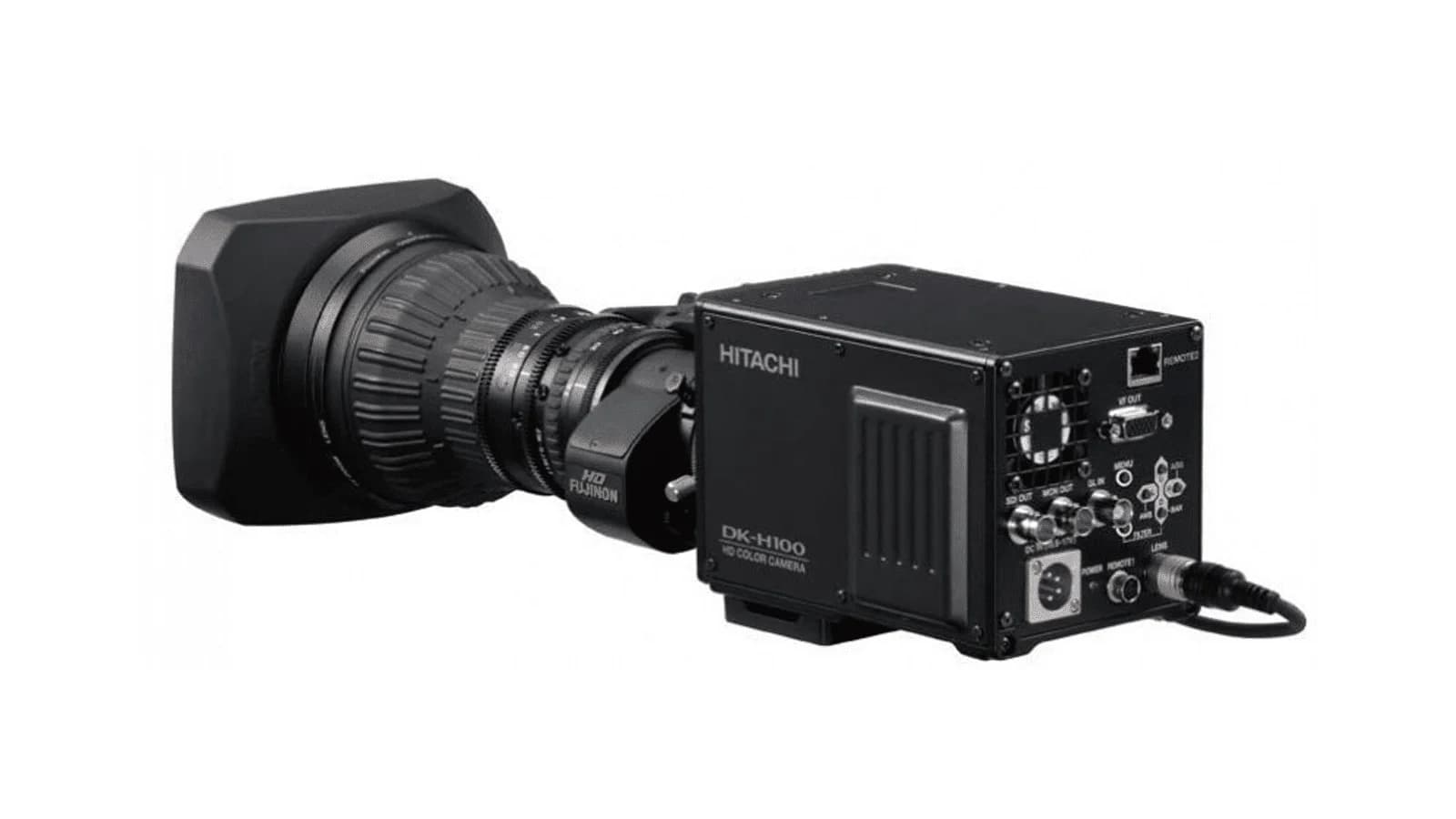

Hitachi DK-H100 – Camera Chains & Accessories

The DK-H100 is a self-contained camera head without a dedicated CCU. It outputs SDI directly and accepts genlock via tri-level sync or Black Burst. Verify that your sync distribution and SDI infrastructure can supply stable genlock reference at the camera location. If you're upgrading from a traditional chain camera with a CCU, confirm your RCP (if used) can control the motorized filter wheel via the appropriate control protocol—this varies by configuration, so contact Hitachi support with your system topology to confirm compatibility before purchase.

Rated minimum sensitivity is 0.002 lx at F1.4 with +72 dB gain boost—suitable for very low-light surveillance or POV applications. However, at maximum gain, noise floor rises measurably. The 60 dB SNR spec applies to normal (lower-gain) operation. For remote observation, expect acceptable pictures down to ~0.1–0.5 lx with controlled gain; below that, noise becomes visible. Test in your actual lighting environment. The 14-bit A/D and Hitachi DSP help preserve shadow detail even at elevated gain.

Yes. The camera provides two independent HDTV-SDI/SD-SDI outputs: main and monitor. Both are genuine SDI outputs. No impedance matching issues. Observe standard SDI cable limits: up to 300 m on good 75 Ω cable at 1.5 Gbps (HD-SDI). The VF output (YUV/RGB selectable) is a third output for headset or small monitor. No active re-driver onboard, so plan cabling accordingly. Confirm your monitor and router can accept both outputs without termination conflicts.

17 W per unit is low; a single regulated 12 V supply can support many cameras. In OB vans, use a dual-PSU architecture (two independent 12 V regulators on separate circuit breakers or a redundant supply module) feeding a distribution panel with individually fused camera drops. This protects against single supply failure and allows maintenance without darkening all cameras. Ensure gauge wire for each run and locate 12 V power distribution near camera positions to minimize voltage sag over long cable runs. Confirm your truck's power budget; low consumption simplifies overall system design.

Yes. The DK-H100 supports 1080/50i and 576/50i (PAL HD and SD). Sensitivity specification for 1080/50i is F11 (vs. F10 for 59.94i), a negligible difference. The motorized filter wheel and ECC color temperature positions are frame-rate agnostic—no recalibration needed. Genlock accepts either 59.94 Hz or 50 Hz tri-level sync or Black Burst. When field-deploying to PAL markets, simply switch the format on the camera. No firmware reload required, but always verify format setting before rolling tape.

The DK-H100 uses a standard 2/3-inch bayonet mount. Lens selection is wide: fixed ENG lenses (6–50 mm typical), motorized zoom boxes, and specialty mounts are all compatible. For POV and graphics stand use, many operators choose compact fixed primes or compact zoom rangefinders. No special servo electronics are integrated in the camera itself; motorized lenses require independent servo controllers. Confirm your chosen lens has adequate back-focus tolerance and flange depth for the bayonet. Test lens seating and electrical contacts during factory acceptance.

Small profile and low power dissipation (17 W) mean minimal thermal load. The camera is passively cooled; no active fans or heatsinks. In direct sunlight or enclosed mounts (POV rig, graphics arm, remote box), confirm housing or mounting does not trap heat around the lens barrel or sensor block. Standard practice: provide shade or aperture openings for air circulation. No operating temperature range is published, so assume typical broadcast spec (0–40 °C). For extended desert or high-altitude deployment, trial test at the actual location. Low power consumption reduces overall thermal signature vs. larger studio cameras.

A single-fiber output option is available, but the exact fiber standard (SM, multimode, wavelength) and implementation details are configuration-dependent. This option typically requires an optional board or interface module—confirm exact part number and compatibility with your distributor before ordering. Single-fiber reduces cable burden on long cable runs or in tight conduits (POV mounts, aerial rigs). However, confirm whether the fiber output is a conversion from SDI (add latency/power) or native. Factor in fiber optic converter cost, spares, and training. Request a datasheet for the specific fiber module before committing.
