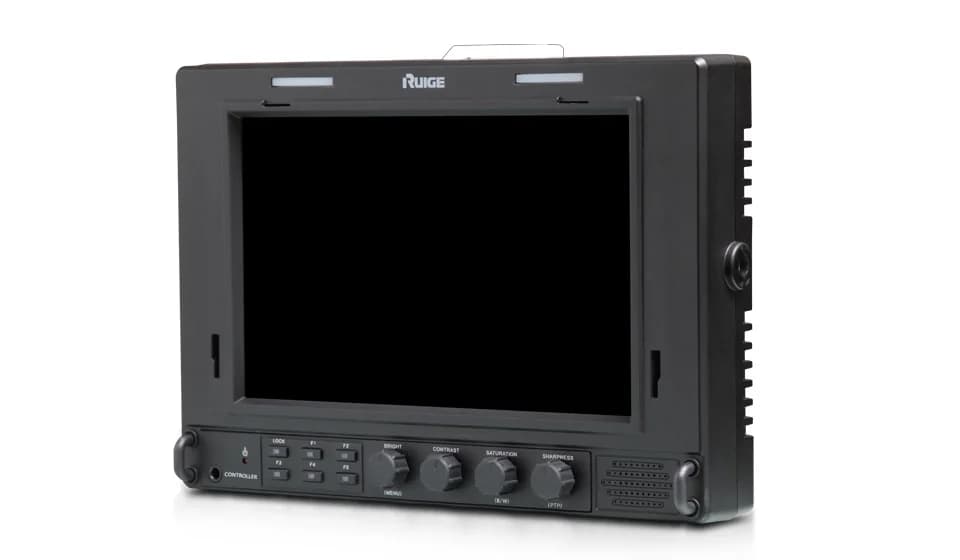

Ruige VF-701HDA – Camera Chains & Accessories

Yes—the VF-701HDA is factory-qualified for all Grass Valley LDK series cameras (SD: 100/200/300/400/500; HD: 4000/5000/6000/8000/8300) via the 20-pin Hirose VF connector. No separate CCU link is required; video, sync, and 12V DC power all travel through the single VF cable. This eliminates triax or SDI breakout complexity on compact camera chains. Verify your camera's firmware revision supports the monitor's control handshake if you're running legacy LDK firmware—contact Ruige support with your specific camera model and serial number if uncertain.

The monitor accepts SD and HD formats over the Hirose VF interface per Grass Valley LDK protocol—including 525i, 625i, 720p, and 1080i/p variants. The internal 1280 × 800 display scales both 16:9 and 4:3 content seamlessly via switchable aspect ratio. Critical limitation: the VF-701HDA is tightly coupled to Hirose VF cameras and does not natively accept standalone SDI, HDMI, or component video inputs. For mixed-format OB workflows combining Grass Valley LDK with third-party robotic cameras (Sony, Panasonic), you will require a separate multi-format SDI or HDMI monitor or integrate a dedicated monitoring breakout solution at the production switcher.

At ≤11W, the VF-701HDA draws minimal current; most LDK cameras deliver 15–25W continuous headroom on their 12V supply rail without strain. However, in extended OB van setups with multiple monitors, CCU racks, and long triax runs with high rig current, cumulative 12V rail loading can be significant. Ruige supplies direct 12V DC via the VF connector; if your camera's internal PSU is marginal or if you're stacking loads, discuss auxiliary 12V regulation with your system integrator. Always check camera manufacturer power supply specs.

Hirose VF connectors are industry-standard on broadcast cameras and are robust for repeated mating cycles. The connector itself rarely fails if kept clean and dry. Wear items: the cable itself (check for kinks, strain at the monitor connector annually), and the tally light contacts if used intensively in dusty environments. Keep spare VF cables on hand for OB van operations; a spare monitor is prudent for redundant setups. Ruige does not publish connector life cycles, but clean connections and controlled storage will extend service life significantly.

Yes—the monitor includes an adjustable rear tally light with external tally input capability, allowing integration with an RCP tally bus, router, or standalone tally controller. The tally circuit is typically 12V logic; confirm your tally source voltage and open-collector/relay contact type before wiring. In multi-camera OB van chains, run the external tally line in parallel with other monitors on the same tally bus. No handshake or protocol negotiation is required—it is passive light indication only. Verify tally connector type (likely XLR or pogo pins) by consulting the monitor's wiring diagram.

400 cd/m² is moderate for bright outdoor work; it is sufficient for typical ENG/OB scenarios in overcast or early/late daylight, and adequate for shaded camera positions. At direct midday sun, contrast and legibility will degrade—this is a fundamental physics limit of LCD monitors. The included anti-reflective sunhood will help but is not a full solution. For mission-critical outdoor production, layer the sunhood with a collapsible diffuser screen, or position monitors in camera shade. Consider a secondary high-brightness monitor (600+ cd/m²) for high-sun critical focus verification.

Focus peaking operates on the incoming HD video stream, not the display resolution, so detection sensitivity is unaffected by the 800-pixel vertical dimension. However, visual clarity of the peaked detail does degrade slightly at 1280 × 800 versus full HD—very fine focus transitions are harder to resolve. False-color exposure analysis (false color, histogram) remains accurate because the algorithms process incoming video data before scaling to display. For precision focus work, treat the VF-701HDA as suitable for HD field work; for post-production critical focus review, specify a full-HD reference monitor. The trade-off is size, weight, and power—intentional for on-camera use.

The monitor is a display-only device; it has no role in camera control, recording, or signal routing. Failure of the monitor does not affect camera operation, video output, or CCU communication—the camera continues to function normally. In redundancy-critical productions, deploy two monitors per camera (rear and front frame) and route both via the single VF connector using a Y-splitter (verify Ruige sells or recommends a suitable passive splitter). Alternatively, cross-connect tally signals to alert operators to monitor loss. The monitor is transparent to the production chain itself.

The VF-701HDA offers manual switchable 16:9 and 4:3 modes, typically via an on-screen menu or physical button. Switching is non-destructive and does not require recalibration; the monitor scales incoming video to the selected aspect ratio without loss of image data. If your Grass Valley LDK camera outputs a specific format (720p is 16:9, 525i/625i can be either), confirm the monitor detects or allows manual override. For mixed-format OB workflows, label the monitor clearly and brief operators on format switching procedure before rolling. Consult the user manual for exact menu location and any frame rate dependencies.

Yes, Broadcast Depot ships worldwide. We arrange transport on quotation, or you can use your own carrier. Delivery usually takes 3 to 5 days. OB vans are delivered by driver or collected on site.

Yes, in case of an error or if you would like another product from our stock: returns and exchanges are possible with no time limit. Contact us to arrange it.
