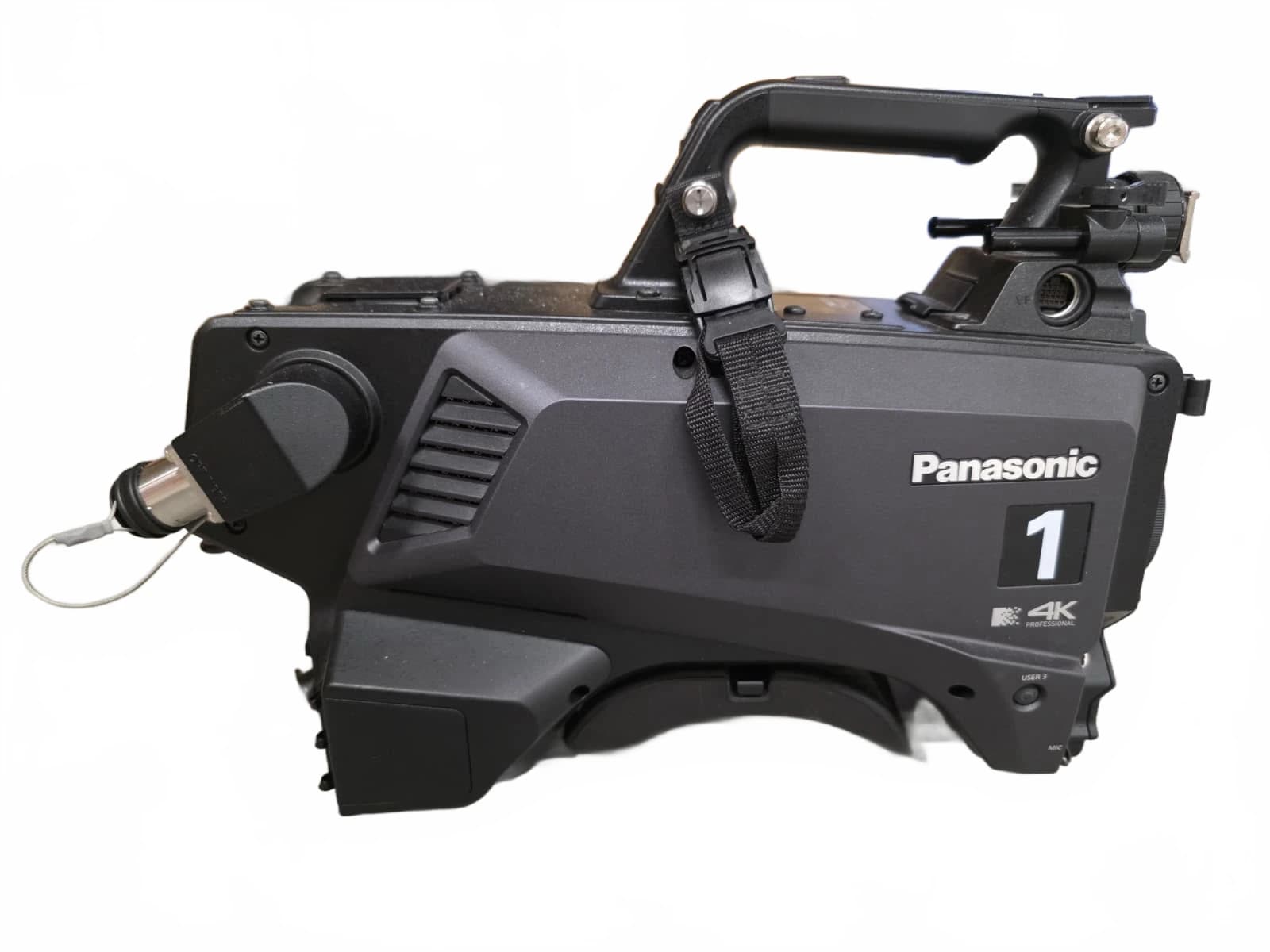

Panasonic AK-UC4000GSJ – Camera Chains & Accessories

The AK-UC4000GSJ supports native RS-422 protocol control and can be operated via an optional remote control panel. RS-422 compatibility means integration with standard broadcast control ecosystems is straightforward. However, compatibility with your specific RCP model—whether legacy or third-party—depends on protocol implementation and CCU pairing. Confirm with Panasonic whether your existing RCP or control surface supports this camera's command set, or plan for a compatible control panel as part of the system build.

The camera provides 3G-SDI and ST 2110–compatible IP-based video outputs. Most professional implementations support both simultaneously, allowing flexible routing—SDI to on-set monitors and legacy infrastructure, IP to modern networked production facilities. Confirm the exact port configuration and whether simultaneous output requires no additional processing or transcoding. This dual-output capability is valuable for hybrid infrastructure but verify the CCU or backend system can handle both feeds without quality compromise or latency issues.

A working broadcast chain requires: camera head, lens (PL mount standard; EF mount optional), CCU (Camera Control Unit), power supply, triax or fiber transport (if remote operation), and monitoring/output infrastructure. The camera head alone draws approximately 180W. You must supply the lens, CCU, suitable SDI routing or IP network backbone, control panel, and proper power conditioning. Verify what CCU models Panasonic certifies for this camera, as the control architecture is modular and configuration-dependent.

The camera specification lists F11 sensitivity at 2000 lux (89.9% reflected), indicating strong performance in high-light conditions typical of outdoor sports and daylight studio work. ND filtration is typically handled at the lens (external ND filters or motorized turret) rather than electronically within the camera body on professional studio cameras. Confirm whether your lens package includes motorized ND and what filter sizes are compatible with your chosen PL or EF mount lens. Advanced color matrix processing aids exposure latitude in mixed lighting.

The camera delivers native 4K UHD (3840 × 2160) resolution. Detailed frame rate support (59.94i, 50i, 23.98p, etc.) and format options (DCI, squared pixels, HDR variants) are not listed in core specs; these often depend on installed firmware, CCU pairing, and output card configuration. Before purchase, request the full format matrix and confirm firmware version supports your required frame rates and color spaces. This is critical for international co-productions or hybrid SDI/IP delivery chains.

Yes, the 180W figure is camera head only. A complete 4K chain—camera, lens, CCU, control panel, and transport electronics—typically draws 250–400W per camera depending on CCU type and accessories. For an OB van with three cameras, plan for 750W–1.2kW minimum, plus headroom for infrastructure. Verify CCU power draw (often 50–150W) and whether your power supply must support simultaneous startup of all cameras. Consult your system integrator on UPS requirements and power distribution architecture.

PL mount is the specification standard; EF mount is an optional alternative. PL-mount lenses are optimized for cinema/broadcast and generally offer superior coatings and mechanics for 4K. EF-mount availability may offer cost advantages or compatibility with existing EF glass, but optical performance and flange-back tolerances differ. Mount changes require recalibration and typically aren't field-serviceable. Choose your mount at purchase based on your lens inventory and long-term optics strategy. Confirm which mount is installed on your unit and obtain a cost estimate if a future conversion is needed.

Professional broadcast cameras require periodic preventive maintenance—sensor calibration, cooling filter cleaning, and fiber/SDI connector inspection. Panasonic specifies operating range 0–40°C; extended operation near thermal limits may shorten component life. Common wear items include cooling fans, cable assemblies, and calibration adjustments. Maintain spares for critical connectors (SDI, fiber, power), control cable, and firmware update tools. Contact your Panasonic support channel for the current maintenance schedule, recommended spare-parts kit, and firmware update roadmap for your model revision.

ST 2110 is a standards-based professional IP transport, allowing the AK-UC4000GSJ to feed modern networked production facilities without SDI conversion. However, integration success depends on your router, control software, and network architecture supporting ST 2110 endpoints. IP introduces frame-timing and clock-synchronization considerations; ensure your facility has Precision Time Protocol (PTP) or similar sync infrastructure. Latency is typically low but configuration-dependent. Conduct a pilot test with your control and routing systems before deploying to production to confirm interoperability and timing performance.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
