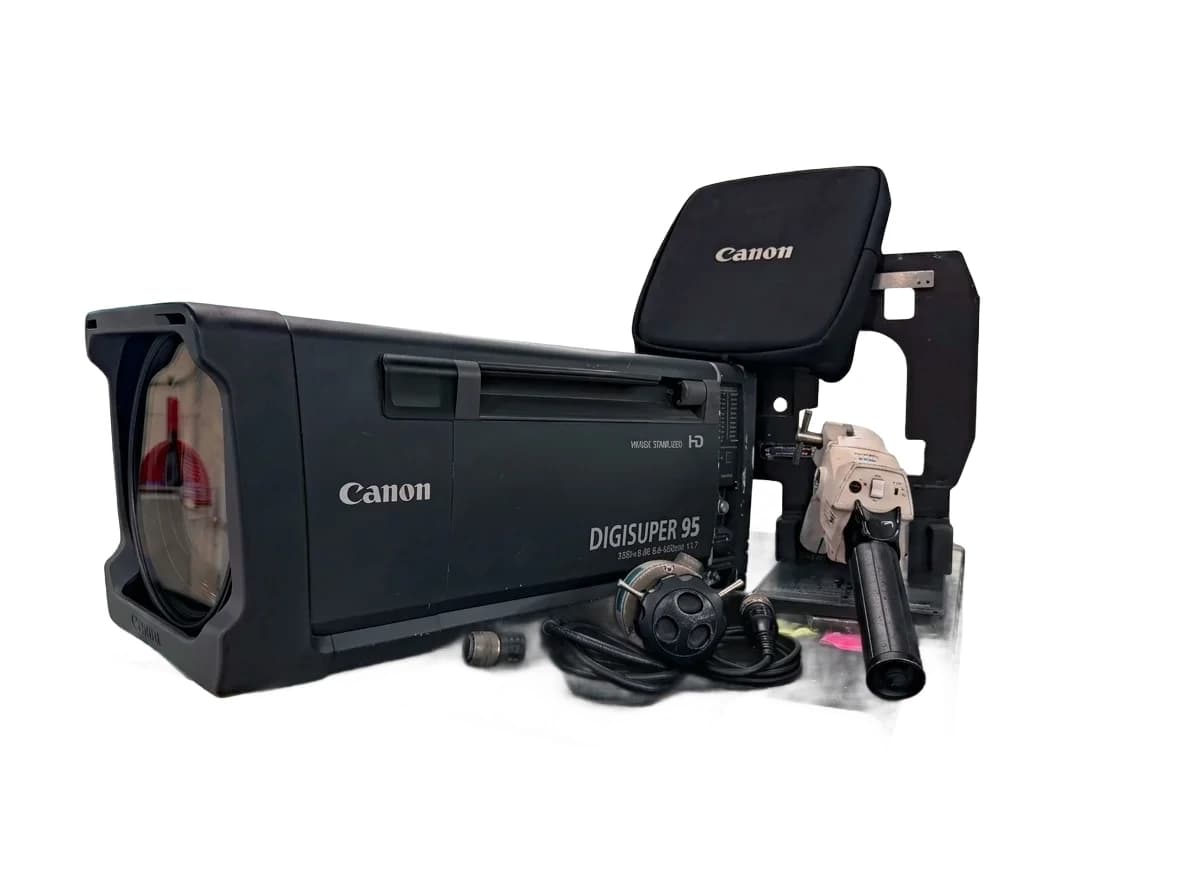

Canon XJ95x8.6B – Lenses

The lens features a 20-pin virtual system support interface and high-performance zoom, focus, and iris encoders designed for professional broadcast integration. It supports standard Canon B4-mount control protocols. However, compatibility with specific RCP models (Grass Valley, Sony, Fujinon, etc.) depends on your van's control architecture and adapter configuration. Confirm your RCP's encoder pinout and protocol requirements before purchase, and verify that your systems integrator has validated the exact control chain you plan to deploy.

At 51.1 lbs, the lens requires a robust cradle or pan-tilt head rated for this weight, plus the associated camera body and CCU backplate. Standard broadcast cradles (e.g., Vinten, O'Connor, Sachtler) accommodate B4 lenses of this class, but load-bearing capacity and balance points vary. Verify your head's payload limit, ensure the lens is properly counterbalanced to avoid drift, and confirm cradle adapters are compatible with both the lens foot and your camera body. Under-specifying the mount risks image stability and operational safety.

The XJ95x8.6B employs optical shift-type image stabilization to counteract hand-held and platform vibration—valuable for remote trucks and flypack setups. At extreme focal lengths (600–820 mm), stabilization becomes critical but cannot fully compensate for gross camera motion. Avoid stacking lens and camera body stabilizers simultaneously, as conflicting correction loops can degrade image quality. Enable only lens-based stabilization when mounted on a stable head; disable on hand-held rigs if camera stabilization is active. Test your specific setup in the field before live deployment.

Minimum object distance is 3.0 meters across all zoom positions. The Constant Angle Focusing System (CAFS) with 32-bit CPU maintains focus precision dynamically as you zoom, a key advantage for live coverage where subjects move or zoom speeds vary. At maximum focal length (820 mm or 1640 mm with 2.0x extender), depth of field is shallow, amplifying any focus encoder drift. Regularly calibrate the focus encoder in your control chain, and confirm the CCU firmware supports high-resolution encoder data from this lens to maintain frame-accurate focusing during critical moments.

Yes, a Canon 2.0x extender is optional and extends the focal range to 17.2–1640 mm. With the extender, maximum aperture narrows to f/3.4 (wide) to f/8.2 (telephoto), reducing light transmission by approximately two stops—a critical consideration for low-light events. Minimum object distance remains 3.0 meters. The extender reduces optical performance slightly but is valuable for sports or wildlife where extreme reach is essential. Confirm extender availability, optical alignment procedures, and test autofocus performance before live use, as encoder response may require CCU recalibration.

Key wear items include zoom, focus, and iris encoder potentiometers and electrical contacts, especially with heavy daily use. Maintain a spare encoder harness and 20-pin control connector. Optical surfaces require regular cleaning with proper broadcast-grade tools; dust ingress accelerates internal wear. Firmware updates and diagnostic software are managed through Canon service channels—verify your integrator has current documentation and firmware for this model. Request a preventive maintenance schedule from Canon service, and plan annual calibration checks if the lens operates in dusty or humid environments. Backup mechanical focus capability is essential if electronic focusing fails in the field.

The 20-pin virtual system interface enables integration with Canon's lens metadata protocol, which communicates focal length, focus position, iris, and extender status to tracking and graphics engines in real time. This is essential for virtual set alignment and accurate chromakey compositing. However, integration requires compatible tracking software and a properly configured network path from the CCU to the virtual server. Confirm your virtual production platform (Unreal, Disguise, etc.) supports the Canon protocol version, and validate encoder calibration matches the software's expectations. Coordinate with your VP integrator during system design; protocol misalignment will cause visible distortion or tracking lag.

The XJ95x8.6B draws power through the CCU via the B4 mount and 20-pin control connector—no separate power supply is required. Encoder circuitry is low-power; thermal management is passive and does not demand active cooling. The lens integrates with standard triax camera chains and 3G-SDI video paths managed by the CCU. Confirm your CCU is spec'd for B4 lenses of this weight and encoder complexity; older or entry-level CCUs may lack sufficient control signal bandwidth. Verify triax cable quality and length limits with your vehicle integrator, as extended runs (>500 m) can introduce encoder jitter that affects focus stability.

Operating closer than 3.0 meters violates optical design and causes focus hunting, soft imagery, and potential mechanical stress on the focus mechanism. Do not attempt to override this limit. In sustained high-temperature environments (>40°C), optical cement and encoder potentiometers degrade prematurely; thermal stress can shift focus calibration. Canon specifies 0–40°C operation; exceeding this range requires thermal housing or frequent recalibration. Plan cooling measures for Middle Eastern or summer deployments. Test the lens in your intended climate during pre-production; field recalibration by Canon service may be unavoidable if thermal drift becomes visible during a campaign.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
