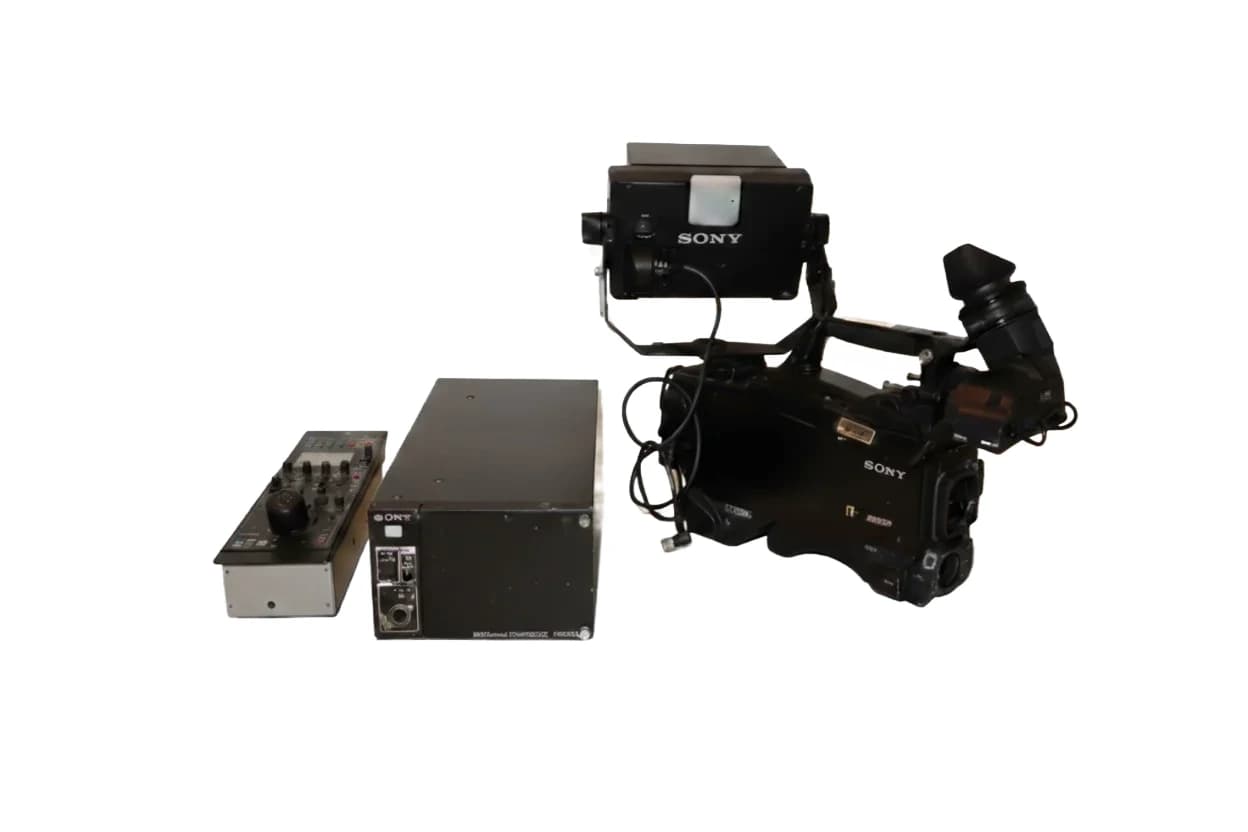

Sony HDC-1500R – Camera Chains & Accessories

The HDC-1500R integrates with Sony Remote Camera Control Panels (RCP) via a standardized control interface. Compatibility with legacy RCP models depends on the specific panel generation and firmware revision; Sony typically maintains backward compatibility across HD-era cameras, but you must verify your existing RCP model against the current HDC-1500R documentation before deployment. For new installations, confirm the control protocol version with your integrator. The camera requires a dedicated control cable run separate from video, which affects OB van routing and studio infrastructure planning.

HD-SDI operates at 1.485 Gbps over standard 75Ω coaxial cable (BNC connectors). Runs up to 300 meters are achievable with quality cable; longer distances require fiber conversion via HD-SDI to fiber transmitters/receivers. Verify your router input capacity and that it accepts 1920×1080 HD-SDI signals in your required frame rates (59.94i, 50i, 29.97p, 25p, 23.98p). Legacy SD-only routers will not accept this camera's output. Plan cable redundancy in critical live environments and confirm EMC compliance for your facility.

The camera supports both interlaced (59.94i, 50i) and progressive (29.97p, 25p, 23.98p) frame rates, but switching between formats requires reconfiguration—it is not a real-time, on-air switchable feature. All cameras in a multi-camera live production must operate in the same frame rate and scanning mode to feed a single switcher cleanly. Plan format selection during pre-production and verify switcher compatibility for your intended frame rate. Document format choice in your rundown to avoid on-air mismatches.

The HDC-1500R features a 2/3-inch bayonet lens mount, compatible with the full range of professional 2/3-inch HD broadcast lenses (e.g., Canon, Fujinon). Verify your lens supports HD optics and the bayonet interface; older SD lenses may exhibit optical aberrations at 1080p resolution. Servo zoom and focus controllers operate through standard 12-pin connectors; confirm your lens servo motors match your control system. Sensitivity (F11 at 2000 lux, 59.94i mode) is typical for studio applications but requires adequate studio lighting or external ND filters in high-ambient-light OB environments.

A complete HDC-1500R system requires: camera head, Camera Control Unit (CCU) for power distribution and image control, RCP for remote operation, triax or fiber cable infrastructure, HD-SDI output to router/switcher, and a power supply for the CCU. The camera cannot operate standalone; the CCU is mandatory for video generation, iris/gain/white balance adjustment, and remote control signal routing. Confirm your CCU model is certified for HDC-1500R compatibility and that your power supply delivers adequate current (consult your system integrator for total draw). Incomplete chains will not produce output.

Operating temperature range is 0°C to 40°C; operation outside this window risks sensor degradation and electronic failure. In outdoor sports or mobile OB contexts, ensure adequate ventilation around the CCU (typically the primary heat source) and avoid condensation during rapid temperature changes (cover the camera when moving between environments). High humidity in outdoor events can cause internal corrosion; confirm your OB van's climate control maintains the specified range throughout the day. Storage temperature range is typically wider; clarify with your provider for archival environments.

The 56dB or greater SNR indicates low noise floor in baseband video, translating to clean blacks and smooth gradations in broadcast imagery at nominal studio lighting (2000 lux reference). In dimmer conditions (below 1000 lux), noise becomes visible; you may require increased lighting or neutral-density filters to maintain image grade. SNR alone does not guarantee perceived quality—evaluate test footage under your typical lighting and compare against competing 2/3-inch models (e.g., cameras with newer CCD generations or higher sensitivity ratings) in your actual studio or OB environment. Request sample HD-SDI recordings for subjective assessment.

CCD sensors are not field-replaceable; sensor issues require factory service or replacement of the entire camera head, which is a significant capital impact. Plan for scheduled maintenance of optical surfaces (lens elements, prism block), and keep spare cables (triax, SDI, control) in inventory as wear items. Firmware updates for the CCU and camera head improve compatibility and color science; confirm update procedures with Sony support and schedule them during non-critical periods. Establish a spare parts relationship with your reseller for immediate access to connectors, filters, and control panels. Request a preventive maintenance schedule from the manufacturer.

Multiple HDC-1500R cameras scale linearly—each requires its own CCU, RCP link, and SDI output. In multi-camera studios or OB vans, share a single power distribution panel and SDI router, but isolate control paths to prevent accidental cross-talk between RCPs. For critical live events (sports, news), consider redundant camera chains: a primary and hot-standby camera feeding selectable inputs on your switcher, with manual or automated failover logic. Confirm your switcher supports priority switching and that your cable infrastructure provides physically isolated paths. Redundancy increases cost and complexity but is standard in high-reliability broadcast workflows.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
