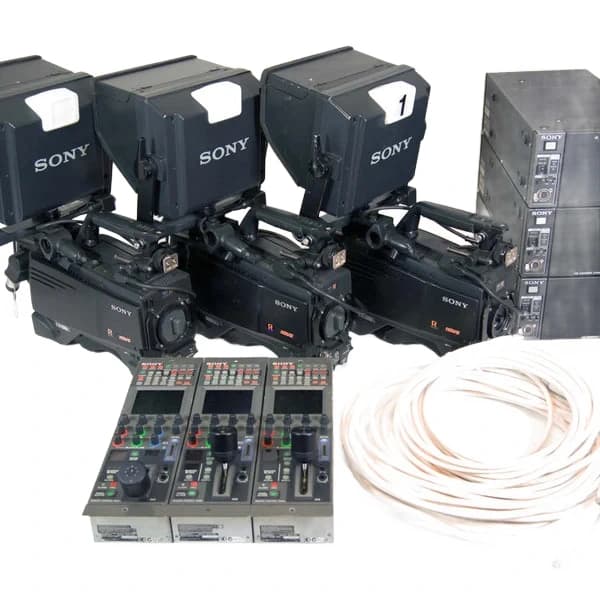

Sony HDC-1400R – Camera Chains & Accessories

The HDC-1400R is designed for integration with Sony's HDC camera control unit ecosystem. Confirm your intended CCU model supports the 1.5-gigabit fibre or Triax transmission protocol you plan to deploy. RCP (remote control panel) compatibility depends on the CCU's control architecture—not all legacy RCPs support the full feature set of newer CCUs paired with the HDC-1400R. Request a system compatibility matrix from your integrator, specifying your CCU model and any existing RCP hardware. This prevents configuration mismatches in live production environments.

The HDC-1400R head alone requires: a compatible CCU, fibre/Triax transmission cable, HD-SDI routing infrastructure, bayonet-mount lens with servo controls, and power delivery via the CCU. For single-camera OB deployment, add an RCP for on-location control, SDI distribution amplifier (to feed monitor chains), multiviewer for confidence monitoring, and redundant SDI return paths for tally/comms. The camera head weighs 4.5 kg; budget infrastructure and cooling in the van accordingly. Consult your system integrator on power distribution—the CCU typically draws more than the head itself.

The HDC-1400R supports both progressive (1080/23.98P, 1080/24P, 1080/25P, 1080/29.97P, 1080/50P, 1080/59.94P) and interlaced (1080/50i, 1080/59.94i) modes, but format switching is a CCU-level operation—not frame-by-frame. In live production, all cameras in a chain must operate in the same format; switching formats requires stopping and re-initializing the entire chain. This means you cannot mix 1080i and 1080P within a single program without offline transition. Plan your production format upfront and confirm CCU support for your chosen standard.

Fibre optic (1.5-gigabit) excels in long-distance runs (100+ meters), EMI immunity, and multi-camera scalability but requires field termination expertise and repeaters beyond typical distances. Triax offers simpler cabling infrastructure and immediate troubleshooting but is distance-limited (typically 300–500m depending on cable grade) and more susceptible to interference on crowded event sites. For a compact van, Triax is cost-effective; for stadium or multi-camera remote production, fibre is industry standard. Verify your transmission infrastructure and CCU option board before purchase—they must match.

The HDC-1400R provides two HD-SDI outputs (carrying the main HD signal) and one SD-SDI/composite output that typically carries downconverted or mixed video. Yes, all three can output simultaneously, allowing HD primary program routing plus parallel SD or composite feeds (e.g., to monitoring, remote graphics, or legacy equipment). However, confirm with your CCU which outputs are independently selectable—some configurations may require the SD output to follow the primary HD signal. This flexibility reduces splitter requirements but verify your signal routing before commissioning.

F11 sensitivity at 2000 lux is standard for professional three-CCD 2/3-inch systems; the HDC-1400R performs predictably in well-lit studio and outdoor day sports. At 56 dB SNR (typical), noise becomes visible in dark scenes or underexposed live streams. The 64 dB option with noise suppression reduces grain but may soften fine detail—confirm whether noise suppression is toggled in the CCU and test it in your specific lighting conditions before deployment. For night events or low-light documentary, consider supplemental lighting or evaluate higher-sensitivity alternatives.

The HDC-1400R uses sealed Power HAD HD CCD sensors; they are not field-user-replaceable—sensor failures require factory service. Plan routine maintenance: lens cleanliness, cooling filter checks on the CCU (not the head), and firmware updates coordinated with CCU versions. Stock spare parts strategically: bayonet lens adapters, fibre/Triax connectors, and SDI cables. Establish a service relationship with an authorized Sony broadcast service center for repairs and sensor resets. For high-utilization fleets, consider a maintenance contract to minimize downtime.

The head itself operates -20°C to +45°C, covering most temperate outdoor and unheated truck environments. However, the CCU—which dissipates more heat—typically requires active cooling and climate control in the vehicle. At +45°C ambient, monitor the CCU's thermal status; consider supplemental van ventilation or thermal management if stacking multiple CCUs. In sub-zero conditions, power up the CCU 15–20 minutes before live operation to stabilize electronics. For tropical or extreme cold productions, consult Sony on thermal de-rating. Temperature extremes degrade color accuracy and sensor life; always prioritize CCU airflow over head temperature.

14-bit analog-to-digital conversion captures finer luminance and color gradation than 12-bit competitors, reducing banding in gradual color transitions and improving color grading headroom in post-production. The benefit is realized only if your downstream infrastructure—CCU, routers, and recorders—preserves the full dynamic range; SDI transport typically carries 10-bit or 12-bit signals depending on format. The 14-bit conversion benefits internal CCU processing and any 4:4:4 RGB output options. Verify your complete signal chain supports the color science you're paying for—otherwise the investment is wasted in 10-bit SDI pipelines.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
