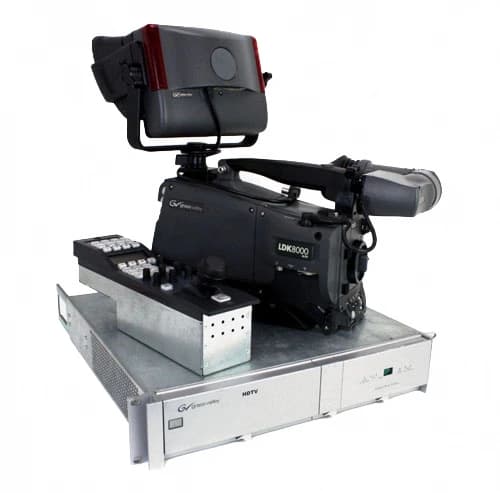

Grass Valley LDK-8000/71 – Camera Chains & Accessories

The LDK-8000/71 is fully RCP-compatible and integrates with standard Grass Valley remote control panels. Control is delivered via fiber-optic or triax connectivity, allowing you to position the camera head remotely from a central CCU. Confirm your RCP model and control cabling infrastructure before deployment. If upgrading from older camera chains, verify that your existing RCP firmware supports the LDK-8000/71 protocol version—consult your system integrator for protocol matching and any required firmware updates.

Triax (single coaxial cable) carries video, audio, and control bidirectionally, simplifying infrastructure but introducing potential EMI in high-RF environments. Fiber-optic isolates the camera from ground loops and is mandatory near RF transmitters or in electrically noisy venues. For 100-meter runs, both are viable; triax is cost-effective for studio, fiber preferred for OB where RF immunity and future proofing matter. Specify both connector options during procurement to retain operational flexibility across different venue types.

The LDK-8000/71 requires a dedicated CCU (Camera Control Unit) to generate video output and manage camera functions via RCP. The camera outputs PAL/NTSC SDI (3G-SDI is standard for this generation). A typical chain is: LDK-8000/71 head → fiber/triax cable → CCU → SDI router/mixer → transmission or recording. Confirm your CCU model is rated for the LDK-8000/71; legacy CCUs may lack required firmware support. Verify SDI input compatibility on downstream routing equipment.

The LDK-8000/71 is a standard-definition analog camera; 700/750 TVL represents SD-grade horizontal resolution. It is **not suitable for native HD or UHD delivery**. If your production requires HD output, you must use a standards converter or external upscaler, which introduces quality loss. The LDK-8000/71 is optimal for SD broadcasting, archival SD content, or as a backup SD source in mixed-format productions. For new HD/4K workflows, evaluate current-generation Grass Valley or third-party camera systems instead.

2000 lux at f/4 is a typical studio specification; most professional soft-light rigs deliver 1500–3000 lux at talent, so the LDK-8000/71 operates comfortably within standard studio lighting. The >59 dB SNR is measured under optimal conditions; real-world SNR degrades slightly with underlit talent or aged sensors. In practice, maintain 2500+ lux for clean skin tones and acceptable noise levels. If studio lighting cannot meet this minimum, budget for additional instrumentation or consider lens speed trade-offs (lower f-number compromises depth-of-field).

The LDK-8000/71 uses industry-standard fiber and triax connectors native to Grass Valley broadcast infrastructure of that generation. Fiber is typically SC or ST; triax uses standard BNC. However, **confirm the exact connector type and mating specifications with your equipment list or systems integrator**, as camera-to-CCU cabling must match precisely. Mismatched connectors cause deployment delays. Request a full interconnect diagram from Grass Valley when placing your order to avoid on-site surprises.

CCD sensors and fiber/triax connectors are the primary wear surfaces. Annual sensor cleaning and calibration are recommended in high-usage environments; fiber connectors should be inspected and cleaned every 6–12 months to prevent signal degradation. The camera head itself is robust, but mechanical iris and focus motors may require lubrication service after 2–3 years of daily use. Budget for spare triax/fiber cabling and connector maintenance kits. Request Grass Valley's recommended preventive maintenance schedule and parts list specific to your control configuration.

Yes—the LDK-8000/71 integrates into standard Grass Valley production switchers and routers via SDI and RCP control paths. Ensure your mixer/router supports 3G-SDI and the camera's CCU control protocol. In multi-camera live productions, all camera chains must be **synchronized to a common master timebase or black-and-burst reference** to avoid sync errors. Confirm that your video distribution system outputs stable reference (genlock) and that each CCU is configured for the same frame rate and standard (PAL or NTSC). Mismatched references will cause horizontal jitter or sync loss on cuts.

ELC (Electronic Level Control) is an automated exposure control mode that analyzes incoming light and adjusts iris and black level to maintain consistent video levels without manual intervention. It is useful in fast-changing lighting conditions (sports, news) but can introduce overshooting or lag in extreme dynamic transitions. For studio work, manual iris control via RCP typically yields superior results. Confirm ELC firmware version and sensitivity settings on your CCU before deployment in fast-paced live events. Some operators prefer ELC disabled for critical productions to maintain absolute control.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
