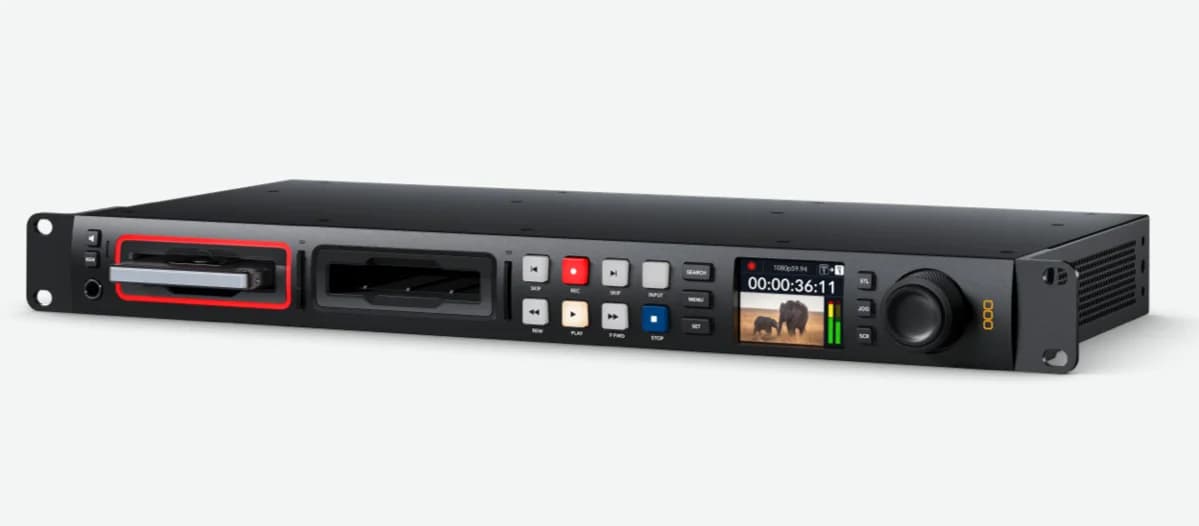

Blackmagic HyperDeck Studio HD Pro – Slow Motion / Recording Systems / VTRs

Yes. The unit features 1x RS-422 remote control in/out for traditional VTR automation and 1x Gb/s Ethernet for network integration. It also accepts XLR timecode in/out for sync with master clocks and house sync via BNC Tri-Sync/Black Burst reference input. This enables integration into OB van galleries and studio automation workflows. Confirm your control system's RS-422 handshake protocol (9-pin or equivalent) and verify Ethernet control options with current firmware before deployment.

The single 6G-SDI input accepts the source feed. The two 6G-SDI outputs allow you to route the ingested video to a playout system and/or monitoring chain simultaneously — not for failover redundancy. The dedicated SDI monitor output provides independent confidence monitoring. For true redundancy, you would need a second HyperDeck or external router. Design your signal chain with this single-input architecture in mind; it suits serial ingest workflows but not parallel recording backup without external hardware.

The HyperDeck accepts timecode via XLR in/out and locks to house sync using the BNC Tri-Sync/Black Burst reference input. This allows frame-accurate sync with other decks and cameras. There is no built-in genlock oscillator; you must supply external black burst or tri-sync from a master timing source (production switcher, sync generator, or master clock). In OB vans, confirm your house sync distribution and verify that all decks reference the same master before rolling record to avoid drift.

The HyperDeck has 2x SSD slots (2.5-inch 9.5mm), 2x SD UHS-II slots, and 1x USB-C external. Duration depends entirely on media capacity and codec bitrate — larger SSDs yield longer sessions. The unit can record to one slot at a time; manual slot selection is performed via the LCD and jog dial or remote control. For multi-hour sessions, pre-calculate media requirements (codec bitrate × duration) and test your specific SSD/SD models on the unit before critical deployment.

Maximum consumption is 100W. The unit supports 100–240V AC 50/60Hz internal PSU and 12V DC 4-pin XLR input, enabling battery or portable power for flypack and OB van use. Dual input options provide flexibility; confirm your DC supply can deliver sufficient current (typically ~8.3 A at 12V) and test the 4-pin XLR connector polarity before connecting external batteries or UPS. For permanent rack installs, AC mains with UPS backup is standard practice.

The unit embeds 16 channels over 6G-SDI input and 8 channels over HDMI 2.0 input. Audio embedding is automatic when present in the source signal; manual level adjustment and channel routing are available via the LCD menu. Verify your SDI source provides properly embedded AES/EBU audio at correct levels (typically −18 to −20 dBFS). If audio is missing or misaligned, check source output configuration before troubleshooting the HyperDeck. Test audio I/O paths end-to-end in your pre-production environment.

No. UHD/4K DCI is limited to 30fps maximum. HD (720p, 1080p) supports up to 60fps with H.264, ProRes, or DNxHD/DNxHR. 2K DCI is also capped at 30fps. SD and interlaced standards (1080i) operate within their native frame rates. Plan your ingest workflows accordingly; if 4K 60fps is required, the HyperDeck Studio HD Pro is not the solution. For 1080p60 and below, all codec options are available; verify your source standard matches the supported format list before installation.

The HyperDeck Studio HD Pro is SDI/HDMI native and does not natively support IP protocols (ST 2110, 2022-7). It can integrate via a gateway or IP converter at the front end (input side) or back end (output side) of your network. The 1 Gb/s Ethernet port is for RS-422 remote control and network monitoring only, not video transport. For IP-primary workflows, evaluate dedicated IP ingest nodes or confirm your conversion strategy with system integrators before committing to this model.
