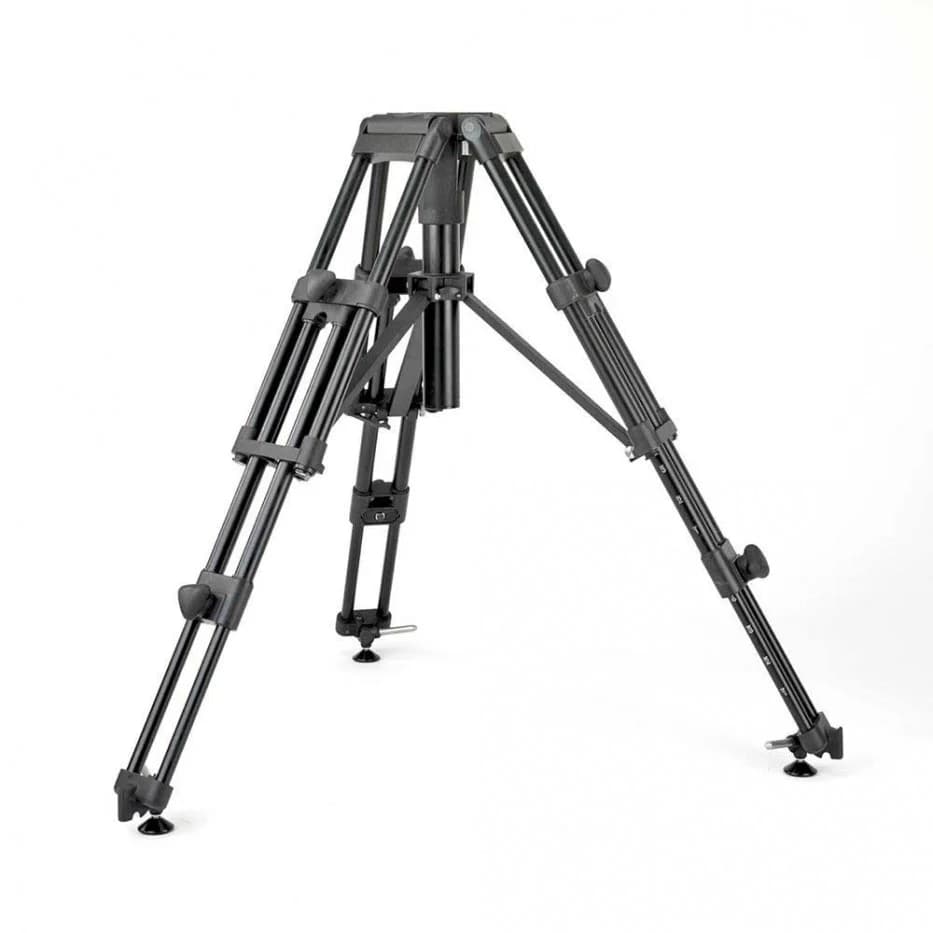

Vinten HDT-2 – Tripods

The HDT-2 features a combined 4-bolt flat and Mitchell mount with integrated QuickFix, allowing rapid interface changes. If your head uses either standard, it will mount directly without adapters. Mitchell-mount heads (common on ENG and studio configurations) engage immediately; 4-bolt flat heads require the corresponding interface plate. Confirm your head's mount type before ordering. The QuickFix system accelerates changeover in multi-head OB deployments, reducing setup time between shots.

120 kg is your absolute ceiling; professional practice dictates staying at 70–80% capacity (84–96 kg) for safe dynamic operation. Typical ENG heads weigh 8–12 kg; modern broadcast cameras (body + lens + matte box) range 18–28 kg; fluid heads add another 8–15 kg. A well-balanced mid-size cinema or studio configuration (head 10 kg + camera 22 kg + viewfinder/monitor 6 kg = 38 kg) leaves healthy margin. Always confirm aggregate weight before deployment, especially with stabilization rigs.

The three-position swivel feet address different terrain: spikes penetrate soft ground (grass, mud) for maximum grip; self-leveling pads compensate for minor slopes and protect hard flooring; sockets accept outrigger feet for extra spread on unstable surfaces. The integrated spirit level bubble helps operators confirm tripod level before camera lock-off. On truly uneven OB van deployments, combine self-leveling pads with the mid-level spreader for rigidity. For studio floors, pads alone suffice. Spikes require careful foot placement to avoid trip hazards.

Minimum height is 51.1 cm (20.1 in.), enabling low-angle shots and tight interior spaces. The single-piece mid-level spreader (Model 3902-25) sets a fixed stance width appropriate for 120 kg payloads without requiring manual adjustment. At maximum 146 cm height, the tripod occupies roughly 1.2–1.5 m² of floor space depending on foot spread. Transport length is 72.5 cm (28.5 in.), fitting standard OB van storage racks. Measure your van's camera wells and aisle widths before finalizing; minimum spreader design maximizes usable floor clearance on tight live-sports or news mobile units.

Pinned and glued telescopic legs are robust but require inspection after hard drops or rough ground use; hinge pins and glue joints are serviceability points. Foot pads and spike tips wear with heavy studio or OB van deployment and are replaceable consumables—order spares quarterly for high-utilization fleets. The spirit level bubble and spreader connection hardware are also wear-critical. Vinten parts ecosystem is well-established; verify your parts distributor stocks legs, foot assemblies, and fasteners before committing large fleets. Document serial numbers and service intervals to track component life.

The HDT-2 ships with a single-piece mid-level spreader (Model 3902-25) optimized for 120 kg payloads and compact OB van storage. Alternative spreader options exist in the Vinten tripod ecosystem, but retrofitting requires mechanical compatibility verification and may alter payload performance or footprint. Mid-level spreaders (standard) provide the best balance of rigidity and portability for broadcast use. Confirm any non-standard spreader option with Vinten technical support before ordering, as changing spreader geometry affects stability at extreme heights and affects transport dimensions. For most broadcast deployments, the included 3902-25 is the correct choice.

At 15.3 kg, the HDT-2 is heavier than compact travel tripods (8–12 kg) but significantly lighter than oversized studio pedestals (30+ kg). The 120 kg capacity justifies this weight in multi-camera OB vans, large cinema rigs, and permanent studio installations where payload density and rigidity matter more than portability. For single-camera ENG or small studios with cameras under 15 kg, lighter tripods may suffice. Conversely, HDT-2 weight provides ballast stability on uneven ground and enables reliable operation at maximum height. Evaluate transport frequency and average payload; high-utilization broadcast deployments benefit from this middle-ground design.

The HDT-2's spreader and leg design provide stable mechanical support but do not incorporate cable management or vibration dampening. Route SDI and control cables away from the spreader to avoid pinch points during leg retraction. In multi-camera OB vans, confirm spreader spacing accommodates adjacent tripods without leg clash during pan/tilt operation or height adjustments. Vibration from external sources (engines, generators) transmits through the legs; position tripods away from van walls and power plant zones when possible. The rigid design is ideal for broadcast but requires attention to mechanical layout—this is standard OB integration practice for three-legged tripods of this class.
