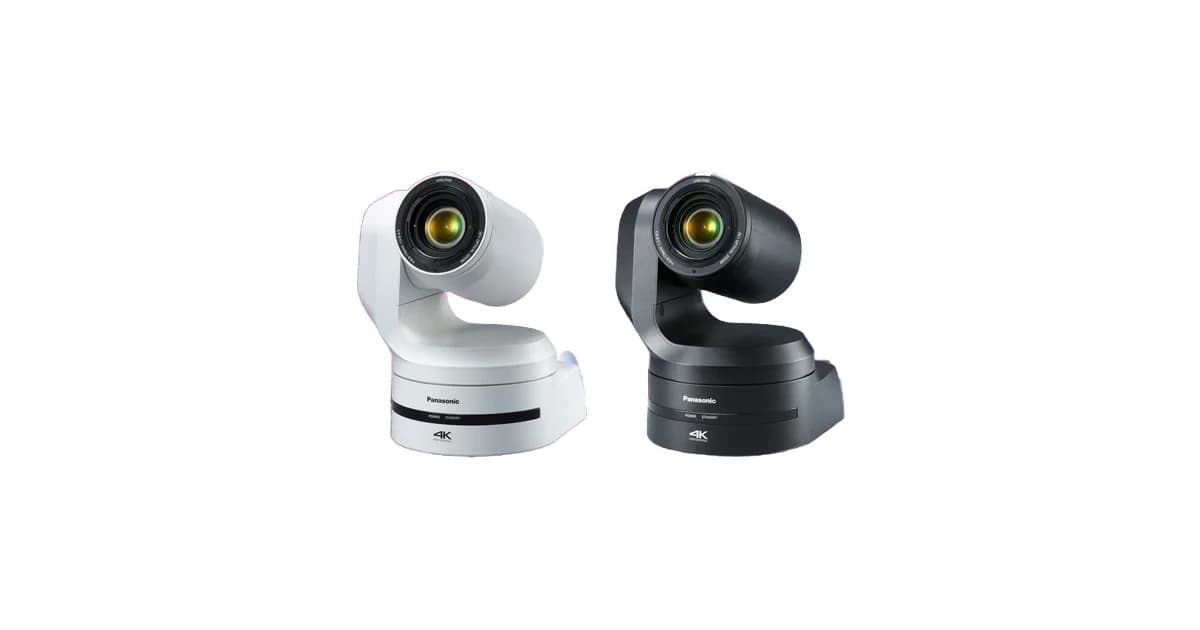

Panasonic AW-UE150 BLack – PTZ Cameras & Accessories

The UE150 supports concurrent multi-format output across its five video interfaces (12G-SDI, 3G-SDI, HDMI, IP, and optical fiber). You can output 4K via 12G-SDI while simultaneously delivering 1080p via 3G-SDI or HDMI to different destinations—useful for broadcast feeds and backup/monitoring circuits. Confirm the exact output routing rules and any firmware limitations by reviewing the control protocol documentation or consulting factory support before final integration.

The UE150 supports industry-standard pan-tilt-zoom control via VISCA and Panasonic proprietary protocols. Compatibility with your existing RCP depends on whether your control system speaks these protocols. Verify your RCP's command set against the UE150 documentation; many modern third-party mixers and control surfaces include VISCA emulation. If legacy proprietary control is required, confirm compatibility directly with the factory or your systems integrator before procurement.

PoE++ supplies sufficient power for full operation including pan-tilt-zoom and all video outputs, eliminating the need for a separate 12V PSU in most setups. However, in OB vans with long cable runs or unstable mains, redundant 12V DC backup is prudent engineering practice to prevent dropout. Calculate total van power budget including multiple cameras; PoE++ aggregation at the switch may limit simultaneous full-load cameras. Design your power architecture early and confirm switch specifications.

At 4.2 kg the camera body is lightweight and suitable for quick deployment on pan-tilt heads, jib arms, and crane systems common in outside broadcast. The mount bracket weight is not specified; confirm with your rigging supplier. The compact footprint (213 × 267 × 219 mm) simplifies integration into tight truck spaces. Ensure your pan-tilt head and associated cabling are rated for the combined system weight and verify vibration isolation if mounted on moving platforms.

The 20x optical zoom (F2.8–F4.5) maintains full 4K resolution and sensor detail. Intelligent zoom to 24x in UHD uses sensor cropping, preserving detail at moderate tele framing but with narrower field of view. Beyond 24x, quality drops noticeably. For critical shots, optical zoom is always preferred; intelligent zoom works well for live production where minor detail loss is acceptable. Test your specific lens glass and lighting conditions; optical performance depends on aperture and subject distance.

One interface suffices for basic operation. Most modern studios standardize on 12G-SDI for main output and add HDMI for redundancy or monitoring. IP/NDI-HX V2 (included) suits distributed workflows and remote production. Optical fiber is rare except in long-distance, high-noise environments. Size your infrastructure around your primary routing standard, then add secondary interfaces for failover and monitoring. Avoid over-provisioning unused outputs; it adds cost and maintenance overhead.

The UE150 is not rated as weather-sealed; outdoor use requires protective housing or environmental enclosure. Rain ingress, thermal cycling, and direct sunlight degrade electronics and optics. For exterior mounting (e.g., stadium, outdoor venue), specify a weatherproof PTZ camera enclosure with thermal management. Studio and indoor OB van environments present no environmental constraints. Always check factory operating temperature range (confirm via datasheet) and allow adequate ventilation around the lens and body for heat dissipation under sustained operation.

Firmware updates are supported via USB or network; check the official firmware portal for release schedules and compatibility before deploying major updates in production. Wear items typically include the pan-tilt motors, optical assembly (if field-replaceable), and cabling. Panasonic publishes a spare parts list; prioritize RJ45 connectors, SDI adapters, and replacement pan-tilt modules if you operate multiple units. Establish a relationship with your distributor for expedited parts orders and consider maintenance contracts for critical fleet deployments.

The UE150 includes NDI-HX V2 licensing for lightweight IP streaming over standard Gigabit Ethernet. NDI-HX is ideal for backup, monitoring, and remote contribution feeds, consuming ~30–50 Mbps depending on resolution and frame rate. ST 2110 compliance is not confirmed for this model; verify directly with Panasonic. For primary broadcast output, use 12G-SDI or 3G-SDI (lossless, predictable). IP/NDI complements but does not replace SDI in critical production chains. Plan network QoS and redundancy accordingly.
