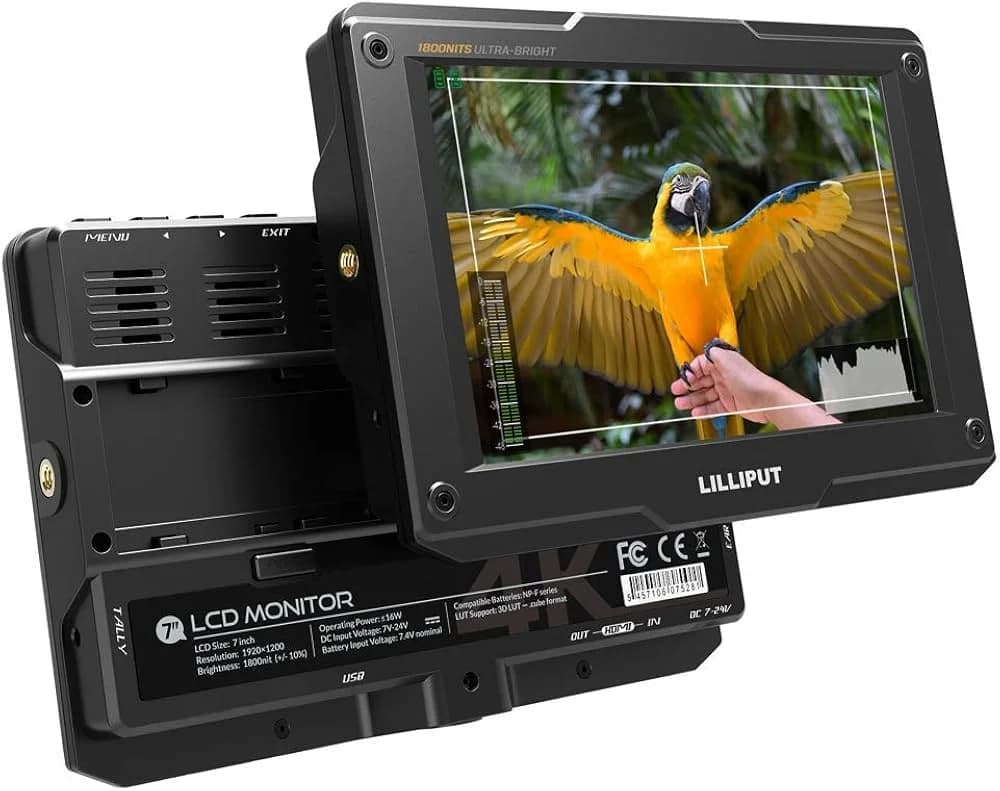

Lilliput H7S – Video/Audio Monitors

Yes. The H7S accepts 3G-SDI input and provides 3G-SDI loop-through output, allowing you to tap into your SDI distribution chain without consuming a dedicated output. Supported SDI formats span 720p through 1080p at 24/25/30/50/60 Hz. For multi-monitor setups, daisy-chain via loop-through or use a router's SDI outputs. Note: 4K monitoring requires HDMI input; SDI is limited to 3G bandwidth.

The H7S accepts HDMI up to 4K (2160p) at 24/25/30 Hz only — no 50/60 Hz 4K support. SDI is capped at 3G-SDI (1080p max). If your workflow demands 4K at higher frame rates, this monitor is not suitable; you would need a larger or more capable monitor. However, for typical broadcast grading, slow-motion review, and DCP mastering at 24p, it covers 4K monitoring adequately.

Yes — both ST2084 (PQ) at 300/1000/10000 nits and HLG are supported. The monitor automatically detects HDR metadata from HDMI or SDI input; no manual configuration is typically needed. Ensure your camera or graphics output is HDR-flagged. HDR monitoring is particularly valuable for grading and compliance checking. Confirm your source device transmits HDR signalling correctly; some SDI devices require menu activation.

The 1920×1200 resolution on a 7-inch IPS panel yields approximately 323 ppi, supporting detailed waveform/histogram overlays and menu navigation without pixelation. Standard broadcast monitoring tools (timecode, vectorscope, focus peaking, SafeArea guides) remain legible. Compared to lower-res 7-inch monitors, the H7S offers sharper graphics and better data density — particularly valuable for colour-critical work and detailed exposure analysis in bright outdoor conditions.

The H7S draws ≤16 W and accepts dual Sony NP-F battery plates (e.g., NP-F970 @ 6700 mAh each). A single F970 typically yields ~8–10 hours of runtime; dual plates in parallel extend this significantly. For OB van use, operate it from vehicle 24 V DC or a regulated PSU (7–24 V range). On-location: prioritize NP-F swaps or combine with a portable battery distribution block. Verify actual runtime with your specific battery batch; age and temperature affect capacity.

Yes — the H7S accepts 3D LUT files via USB 2.0, specifically .cube format at 17×17×17 BGR resolution. This enables direct application of DIT LUTs or reference grades during acquisition. Load via the onscreen menu; confirm your LUT generator exports the correct dimension and order. Useful for matching camera output to a digital intermediate target or applying a house style. Firmware version can affect compatibility; test LUTs before a critical shoot.

Rated at 1800 cd/m² (±10% centre), the H7S delivers solid nits for outdoor use — comparable to broadcast field monitors but not peak-brightness studio units. In harsh direct sunlight, reflections may degrade perceived contrast more than absolute brightness limits. Pair with a quality sun hood or position carefully. The IPS panel ensures stable colour and brightness across wide viewing angles, useful for multi-operator monitoring. Operate within 0–50°C; extended heat exposure may degrade battery performance.

The H7S does not integrate with camera CCUs or RCPs via remote control — it is a passive display monitor only. HDMI 1.4b and 3G-SDI inputs are industry-standard; compatibility with cinema cameras, broadcast cameras, and switcher outputs is very broad. Verify HDR signalling with your specific camera firmware. For SDI, confirm your camera outputs true 3G-SDI (not ASI or custom variants). No Ethernet control or tally support; if remote monitoring or tally is critical, confirm an alternative or workaround before specifying.

As a display device, the H7S has minimal wear items: the battery plates (consumable, user-replaceable) and the LCD panel (high-lifespan component, typically 30,000+ hours). Firmware updates may address format support or LUT handling; check the manufacturer's website periodically. No fans or moving parts reduce noise and maintenance. Keep USB ports clean for LUT updates. For long-term field use, budget for eventual panel replacement after 5–7 years of heavy duty. Contact the manufacturer directly for current firmware versions and any format errata.
