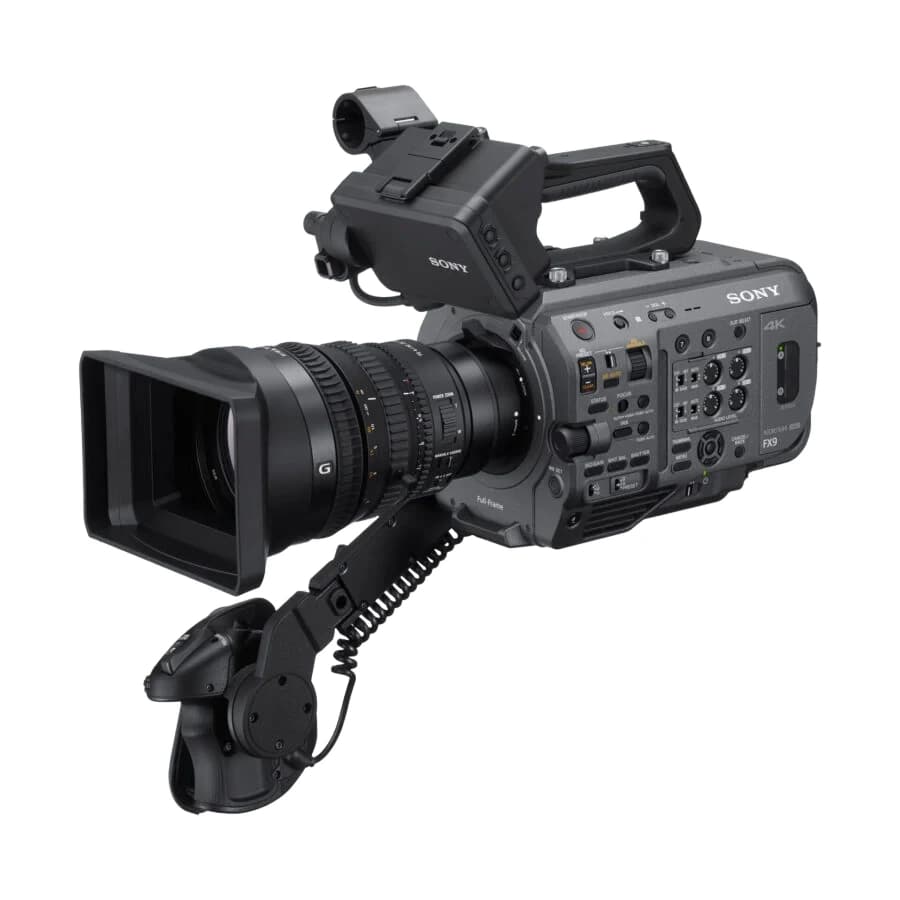

Sony FX9 – Cameras

The FX9 outputs native 12G-SDI, so it connects directly to 12G-capable routers and monitoring chains without format conversion. However, if your van's router and distribution amplifiers only support 3G-SDI, you can output via 3G-SDI instead—the camera supports both. Confirm your entire signal path (router, distribution, multiviewers, recorders) supports 12G if you want to run UHD 4K 60p uncompressed. For HD or DCI 4K workflows, 3G-SDI suffices. Verify firmware revision before deployment to ensure SDI stability in your specific environment.

XAVC-I delivers 10-bit 4:2:2 at up to 600 Mbps, supporting DCI 4K 30p and UHD 4K 60p natively. XAVC-L (8-bit 4:2:0, 150 Mbps) suits HD workflows and lower-bitrate delivery. Standard frame rates run 1–60 fps across all resolutions; 120 fps 4K and 180 fps HD require firmware support and RAW output via external recorder (typically via SDI to SSD recorders). Confirm your storage backend can sustain 600 Mbps for XAVC-I before committing—this determines whether you need striped RAID or dedicated SSD arrays.

Dual base ISO lets you optimize signal-to-noise ratio for your scene: ISO 800 minimizes noise in well-lit studio or outdoor daylight; ISO 4000 preserves detail and extends dynamic range in low-light interviews or night OB work without amplifying the sensor noise floor. Switching is a firmware or menu setting, not automatic. Low-light scenarios (evening events, theatre, interior venues) benefit from the 4000 setting. Studio multi-camera chains typically lock ISO 800 for consistency. Test both in your target lighting environment before air.

The 561-point Hybrid AF with Eye AF and Real-time Tracking is production-proven for ENG and live situations, but no autofocus is bulletproof—focus hunting, subject occlusion, or rapid camera movement can break lock. For live broadcast, deploy AF as a convenience tool for dynamic shots; always have a dedicated focus puller (manual follow focus on a wireless controller) as primary control for critical takes. Studio teleprompt interviews can use Eye AF with confidence, but hard-cut sports or fastmoving talent demand manual backup. Train operators on focus assist peaking and zebra framing.

RAW and 120 fps 4K / 180 fps HD output via 12G-SDI to external SSD recorders (e.g., Atomos Ninja V+, Blackmagic Video Assist). 12G-SDI alone can carry RAW 4K; confirm your recorder's spec sheet for exact format support. SDI bandwidth at 4K 120p or RAW approaches the full 12G limit (~1.5 Gbps per frame rate). Budget SSD storage cost separately—RAW or high-frame-rate codecs consume 2–4 TB per hour. Verify the recorder supports Sony's output protocol and timecode sync before procurement. Many OB vans skip RAW for live work due to storage overhead; confirm your use case justifies the cost.

The FX9 works with Sony's RA-WS1 Wireless Remote Commander and integrates into multi-camera CCU chains via XDCA-FX9 expansion units (adds Ethernet, additional monitoring). However, the camera does not require a dedicated CCU to operate—you can control exposure, white balance, and basic functions via the body menu or wireless remote. Third-party RCP systems may require custom configuration; consult your CCU vendor. For studio multi-camera setups, Sony's ELC (Enhanced Live production Center) workflow is recommended but not mandatory. Confirm control protocol compatibility before committing to mixed-brand infrastructure.

Sony does not publish exact power draw in standard specs, but the FX9 body operates from either Sony L-series batteries or via external 12V DC input (verify connector type with your supplier). Typical broadcast battery blocks (Gold Mount or V-Mount, 95–150 Wh) support 2–3 hours of continuous operation; confirm run time with your accessory battery supplier. For stationary OB van or studio deployment, a dedicated 12V regulated PSU is cleaner than batteries. If using batteries, budget spares and a fast charger. Powering the XDCA-FX9 expansion and wireless remote increases total draw—specify full system power when sizing UPS or distribution.

No moving shutter or mechanical iris means the FX9 is relatively wear-free; the main consumables are batteries and media. Firmware updates are periodic (check Sony's support site quarterly); they may unlock frame rates, improve AF, or enhance codec support—plan a test window before applying live. The back-illuminated sensor is robust but dust-sensitive; use lens caps religiously and periodically inspect the sensor via live view. E-Mount lenses wear at the bayonet; verify your lens inventory for wobble before deployment. Thermal management is passive; avoid direct sunlight on the body during setup. Keep spare SDI cables and battery inventory. Schedule annual sensor inspection if running in high-dust environments (OB vans).

The FX9 does not have built-in redundancy features (no dual recording, no automatic failover), but multiple cameras can be synchronized via timecode (SDI embedded or external Genlock input—confirm availability in your configuration). For mission-critical single-camera live broadcast, deploy a second FX9 as hot standby with identical lens and settings; operators must manually switch. Timecode sync ensures seamless cuts if both roll. For critical OB work, pair the FX9 with a backup camera on a separate circuit. The camera's 15+ stops dynamic range and dual base ISO reduce reshoots, improving reliability. Consult your systems integrator on multi-camera timecode and genlock architecture before ordering.

Yes. Our used and ex-demo units undergo a full functional inspection — sensors, video outputs, control signals, optics and mechanics — including a colorimetry and sensitivity test. Each product is tested by our technicians and comes with a 90-day warranty. Contact us for the specific warranty terms of the unit you are interested in.
